Projection Microscope

Name: Projection Microscope
Brand: SAMTECH INSTRUMENTS
Price: 6250 INR
Availability: InStock

Price 6250 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Projection Microscope Specification

Features
Built-in high-quality projection screen, high intensity halogen illumination, rotatable viewing head, excellent optical performance

View Head
As per model: Binocular/Trinocular, rotatable 360

Spare Parts
Bulb, fuse, immersion oil, dust cover provided

Focus System
Coarse & fine focusing mechanism

Theory
Projection Microscope is used for observation and projection of micro specimens onto a screen for detailed study by a group of viewers.

Drawtube
Trinocular tube, 45 inclined

Resolution
Depends on optical system and screen projection size

Interface
Projector optical output, optional camera port

Focal Distance
160 mm mechanical tube length

Magnification
Up to 1500x (varies as per objectives & eyepieces used)

Dimensions
Approx. 350 mm x 240 mm x 440 mm (L x W x H)

Focus Range
Coarse: 30 mm, Fine: 2 mm

Eyepieces
10x (Wide Field); Pair provided

Eyepiece Tube
Binocular/Trinocular

Illumination
Halogen lamp, 6V/20W with reflector; adjustable intensity

Coarse Adjustment Range
30 mm or more

Fine Adjustment Range
2 mm precision movement

Working Stage
Mechanical stage with double slide holder, graduated movement

Image Format
Projection onto built-in, folding screen (approx. 6-8 inches)

Interpupillary Distance
55-75 mm adjustable

Objective Achromatic
Achromatic objectives 10x, 45x, 100x Oil Immersion

Condenser
Abbe condenser N.A.1.25 with iris diaphragm

Light Source
Halogen lamp, 6V/20W

Protective Accessories
Dust cover, spare halogen lamp, fuse included

Reflector
Adjustable built-in reflector for even image distribution

Stage Size
Approx. 120 mm x 120 mm

Body Material
Rigid metallic casting with durable finish

Power Supply
220-240V AC, 50/60Hz

Optical Path
Reflex mirror system for bright & uniform projection

Projection Screen Size
Circular, approximately 200 mm diameter

Weight
Approx. 12-15 kg net

Stage Movement
X-Y axis mechanical movement with vernier scale

Projection Microscope Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Projection Microscope

Take advantage of this best-seller Projection Microscope, renowned for its unprecedented clarity and famed for group demonstrations in laboratories. This scientific virtuoso, crafted from rigid metallic casting, features a circular projection screen, high-intensity halogen illumination, and reflex mirror system for bright, uniform image display. Utilise the offering of versatile optical outputs, adjustable reflectors, and a tri or binocular inclined view for ergonomic study. Protective accessories, spare parts, and adjustable magnification up to 1500x enhance both convenience and performance. Experience unparalleled precision for your microscopy needs.

Versatile Applications Across Academic and Research Settings

The Projection Microscope is ideally suited for educational institutions, research labs, and medical facilities. Its famed ability to project micro specimens onto a large screen makes it perfect for group observation and collaborative discussions. Suitable for use on stable laboratory surfaces, it is widely utilised in botany, zoology, pathology, and material science for intricate sample analysis. Exceptionally well-equipped, this microscope transforms specimen viewing into an engaging, collective experience for students and professionals alike.

Flexible Payment Terms and Reliable Supply Options

Benefit from our lowest price offers with flexible payment terms tailored to institutional and bulk buyers. We estimate prompt order processing and support exchange services when needed. The FOB port is typically India, ensuring smooth global shipping. Our supply ability caters to both small and large requirements, maintaining consistent product availability throughout the year. Take advantage of our dependable service and ensure your laboratory is equipped with a leading projection microscope at competitive rates.

FAQ's of Projection Microscope:

Q: How does the projection microscope enhance group study sessions?

A: The projection microscope projects microscopic images onto a built-in circular screen, allowing multiple viewers to observe and discuss specimens simultaneously, making it ideal for collaborative learning and presentations.

Q: What specimens can be observed with this microscope?

A: You can observe a wide range of micro specimens including biological slides, material samples, and pathological specimens, thanks to its achromatic objectives and adjustable illumination.

Q: Where is the projection microscope commonly used?

A: This projection microscope is typically utilised in educational institutions, research laboratories, and medical facilities where detailed observation and group study are necessary.

Q: What are the main benefits of the reflex mirror optical path?

A: The reflex mirror system ensures a bright and uniform projection, reducing image distortion and providing clear, evenly distributed images on the projection screen.

Q: How do I maintain and protect my projection microscope?

A: Regularly cover the microscope with the provided dust cover when not in use, use spare halogen lamps and fuses as needed, and handle optical parts with care to ensure long-lasting performance.

Q: What are the available payment options and supply capabilities?

A: We offer flexible payment terms, support order estimates and exchanges, ship via FOB port India, and maintain a steady supply ability for institutional and bulk orders.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Microscopes Category

Dissecting Microscope

Price 730 INR / Piece

Minimum Order Quantity : 10 Pieces

Theory : Other, A Dissecting Microscope, also known as a stereo microscope, is designed for low magnification observation of a sample using incident light illumination rather than transmitted light. It is ideal for biological dissection, circuit board inspection, and sample examination requiring a threedimensional view.

Dimensions : Approx. 140 mm width x 180 mm depth x 240 mm height.

Spare Parts : Supplied with a spare pair of objectives, spare eyepieces, and replacement mirror.

Illumination : Incident light from adjustable planoconcave mirror (reflective illumination).

Get a Price/Quote

Compound Microscope

Price 2500 INR / Piece

Minimum Order Quantity : 1 Piece

Theory : Other, A compound microscope uses multiple lenses to achieve higher magnification for the observation of small specimens.

Dimensions : Approx. 360mm height x 140mm width x 190mm depth.

Spare Parts : Replacement eyepieces, objectives, mirrors, and stage clips available.

Illumination : Mirror illumination (concave plano mirror) for reflected/transmitted light.

Get a Price/Quote

Digital Trinocular Microscope with 2MP USB Camera

Price 19500 INR / Piece

Minimum Order Quantity : 1 Piece

Theory : Other, Digital Trinocular Microscope with 2MP USB Camera designed for advanced microscopy and digital imaging.

Dimensions : Approx. 380 mm x 270 mm x 420 mm (L x W x H)

Spare Parts : Supplied: dust cover, immersion oil, power cord, spare bulb/fuse, manual

Illumination : Builtin LED illumination with adjustable intensity

Get a Price/Quote

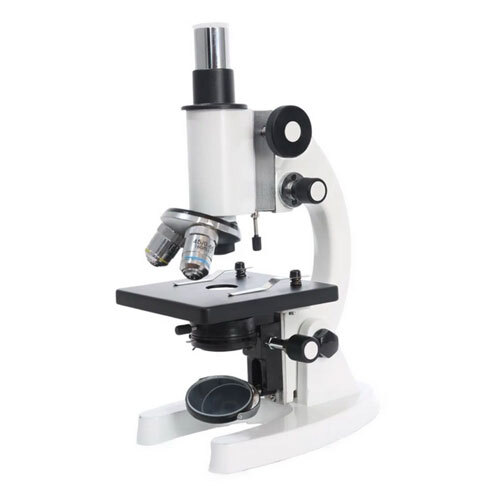

Student Compound Microscope
